The following examples were taken from 11 Visual Hierarchy Principles by Visme.
You can find many videos online about “Top X” principles of visual hierarchy. The number ranges from 5 to 15 or more, so these are not hard and fast rules.
The primary goal of creating visual hierarchies is to make content more scannable.
An important way to make pages easy to grasp in a hurry is to make sure that the appearance of the things on the page - all of the visual cues - accurately portray the relationships between the things on the page.
Pages with clear visual hierarchy have three traits:
- The more important something is, the more prominent it is.
- Things that are related logically are related visually.
- Things are "nested" visually to show what's part of what.
Source: Steve Krug, Don’t Make Me Think; p.33
1. Size and Scale
Size can drive emotion and signify importance. The greater the scale, the greater the emphasis.
Meh

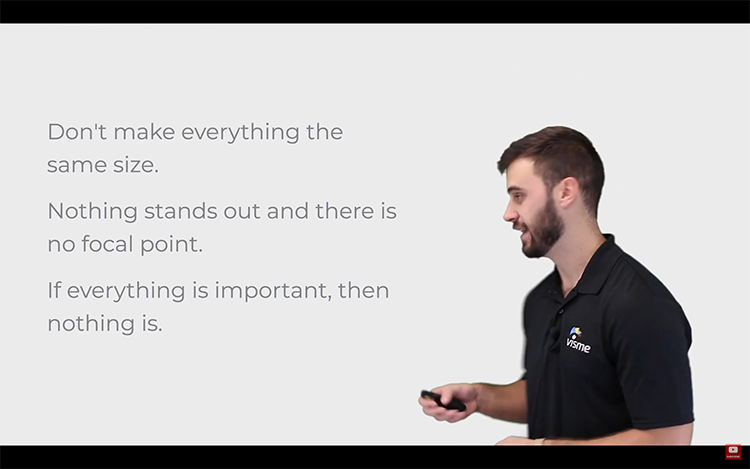

Figure 1: The text is the same size so there is no focal point and no way to tell what’s most important.
Better

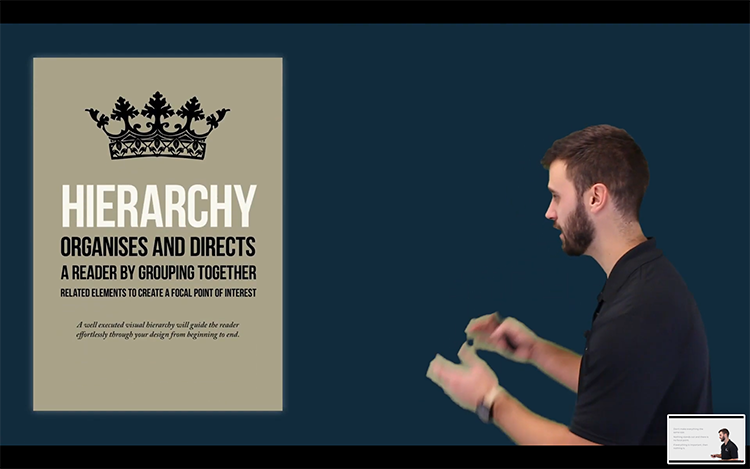

Figure 2: “Hierarchy” is the largest word in this design and, therefore, dictates the focus of the design.
2. Perspective
Perspective creates the illusion of depth, which can lead to a perceived difference in importance.
Meh

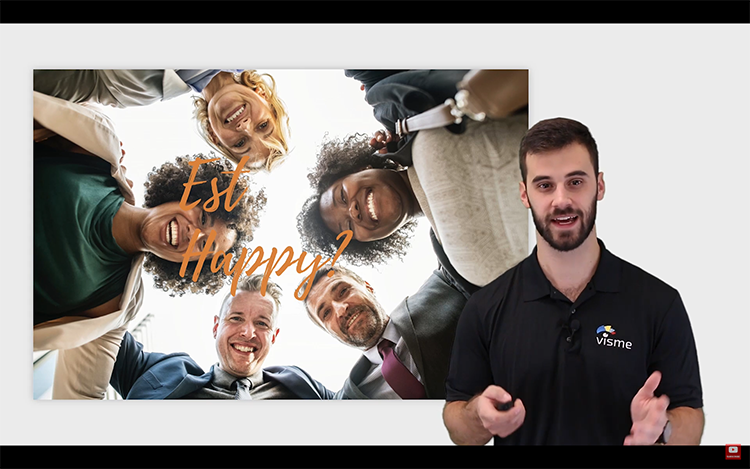

Figure 3: With no depth of field or contrast, the text in this image is very difficult to read.
Better

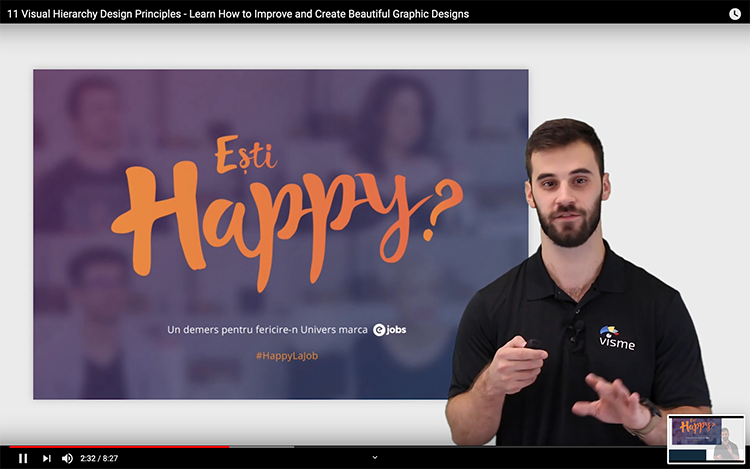

Figure 4: This new design by the same company employs the Bokeh Effect to convey depth of field, making the text easier to read.
The effect of contrast

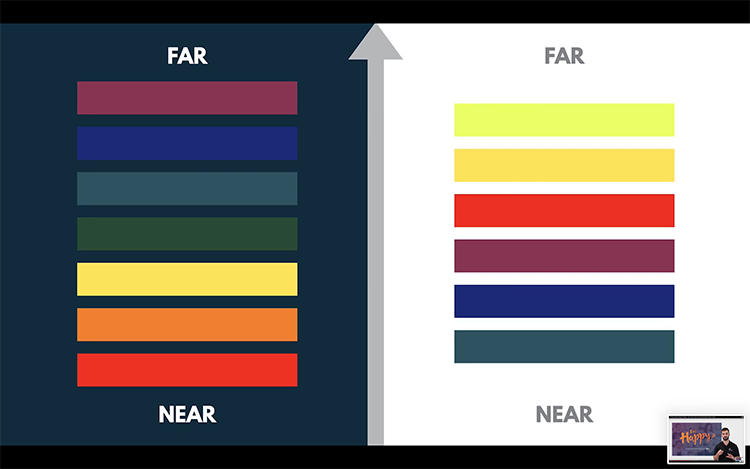

Figure 5: Colours can also create depth. Bright colours look closer on a dark background while the opposite is true with a light background.
3. Colour and Contrast
Similar to size and scale, colour and contrast can also draw attention by providing a focal point for the user.
Meh

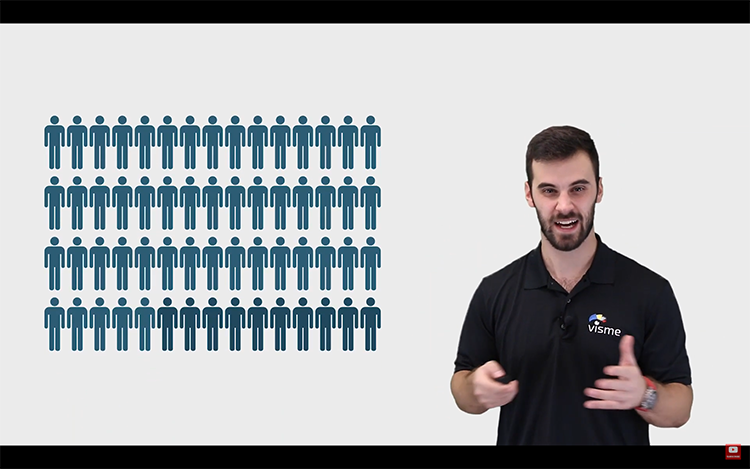

Figure 6: The contrast between the figures in this population statistic are barely noticeable. None of the figures look any more important than the others.
Better
Figure 6: The contrast between the figures in this population statistic are barely noticeable. None of the figures look any more important than the others.
Better

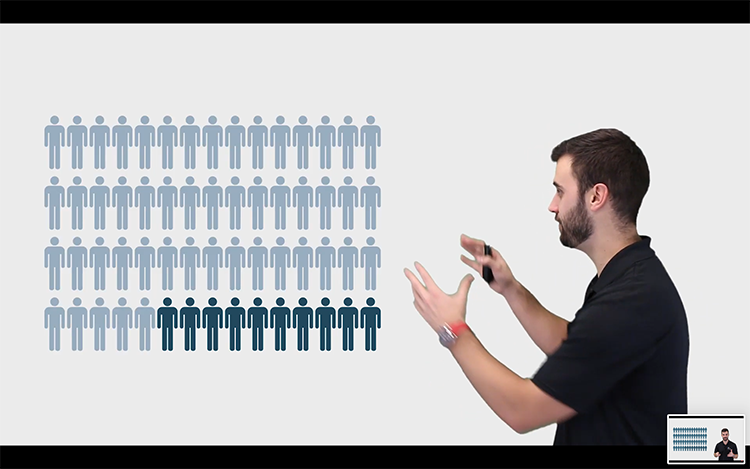

Figure 7: Increasing the contrast between the same figures makes it obvious to the user what they should be paying attention to.
4. Typography
Choosing contrasting fonts (with contrasting size and colour) conveys importance to the user.
Meh
Figure 8: This resume gives no hint to the reader about what is most important to know.
Better

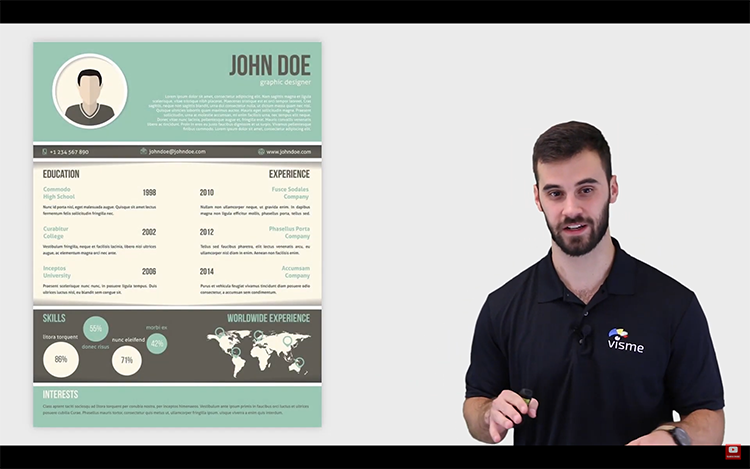

Figure 9: This resume uses contrasting typography, font size and colour to clearly identify where to find the information the reader (i.e. potential employer) is looking for.
5. Proximity
Items that are closer together in proximity also seem more alike.
Meh

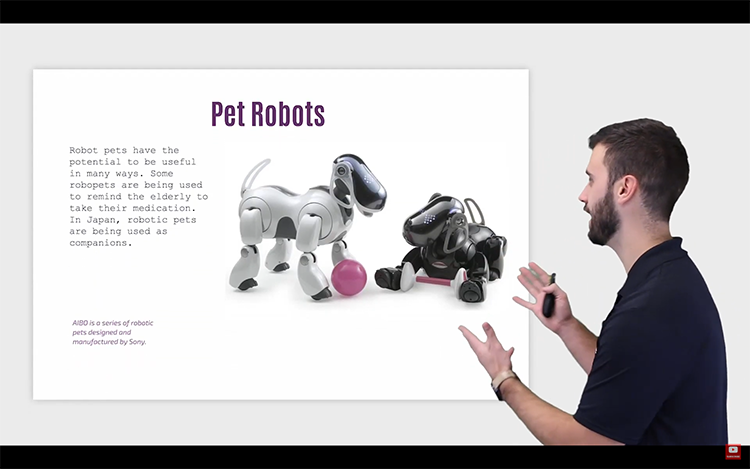

Figure 10: There is no indication, based on proximity, which of these 4 image components are related.
Better

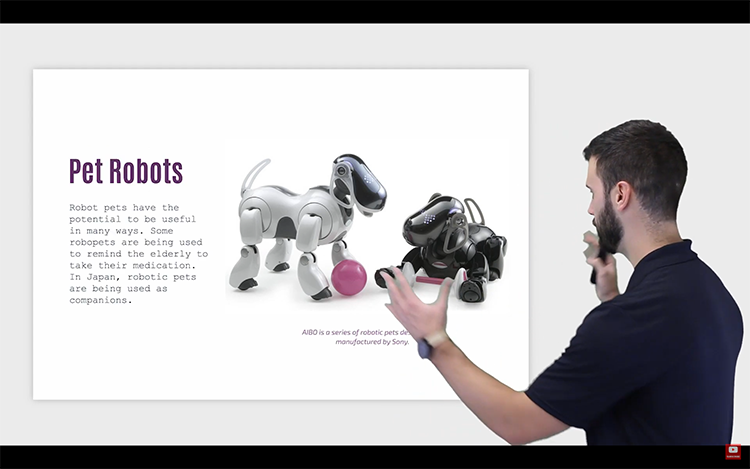

Figure 11: Proximity tells the reader that the heading is related to the body text and that the image comes with a caption.
6. Negative Space
Negative space (closely related to proximity) will naturally draw the eye by removing information.
Meh

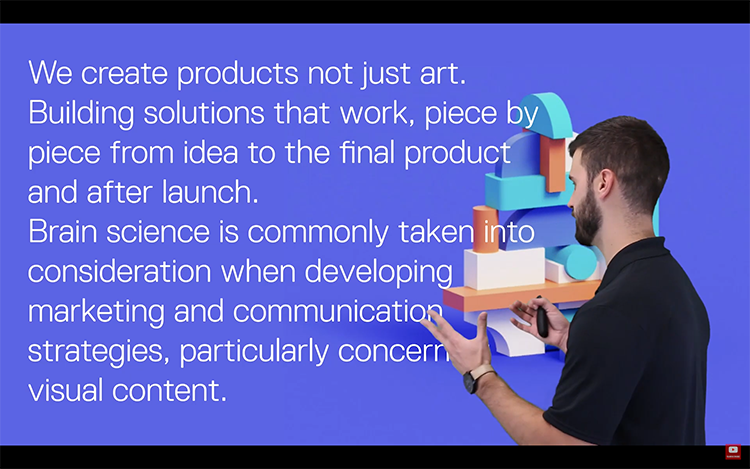

Figure 12: This image has little to no negative space and, therefore, the text is difficult to read and understand.
Better

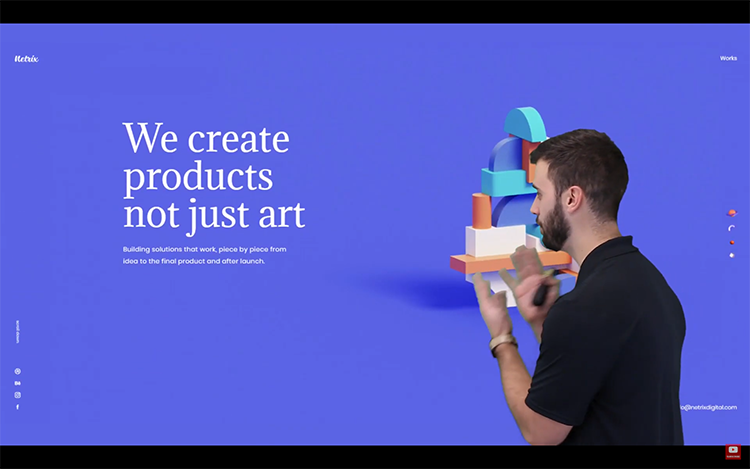

Figure 13: This new design is made much more meaningful with concise text and a lot of negative space.
7. Alignment
Users who write in a left-right direction like to read in an F pattern
Meh

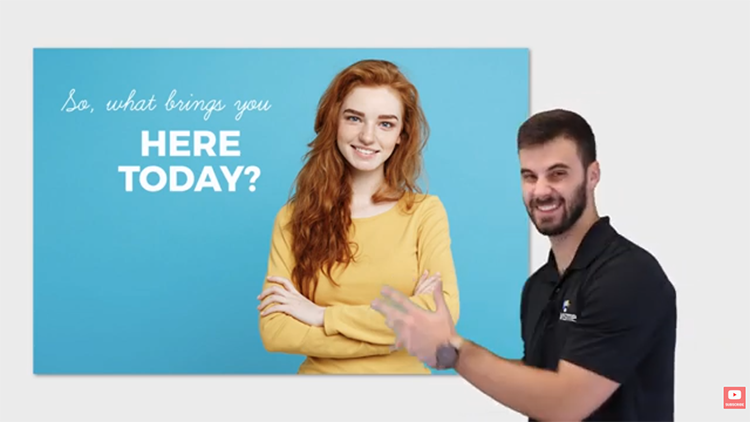

Figure 14: Mixing text alignment often violates the F pattern.
Better

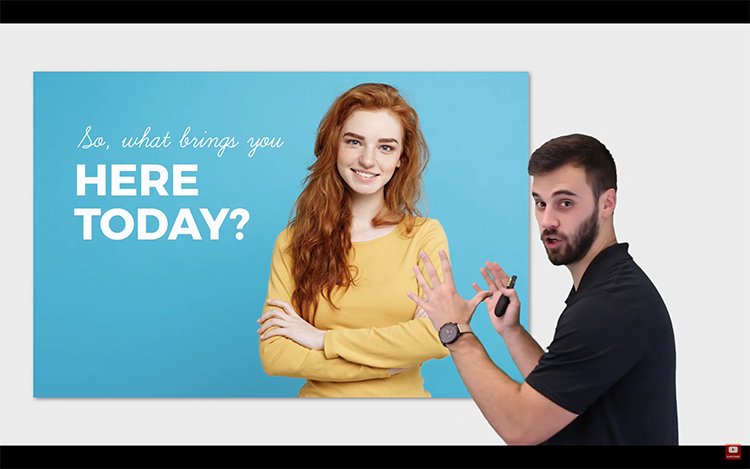

Figure 15: Left aligned text flows naturally into an F pattern.
8. Rule of Odds
Images are more appealing when an odd number of them are applied.
Meh
Figure 16: Two items often appear imbalanced and boring.
Better

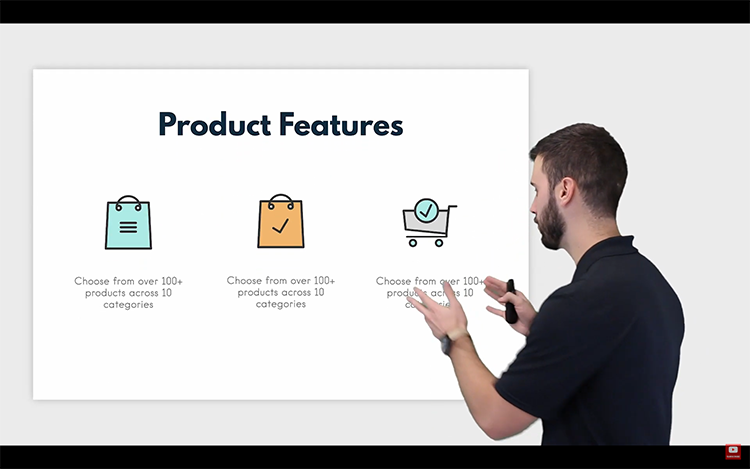

Figure 17: Three items is much more appealing because reasons.
9. Repetition
Repetition creates a feeling of unity and cohesiveness by creating patterns for the user to recognize (consciously or not).
Meh

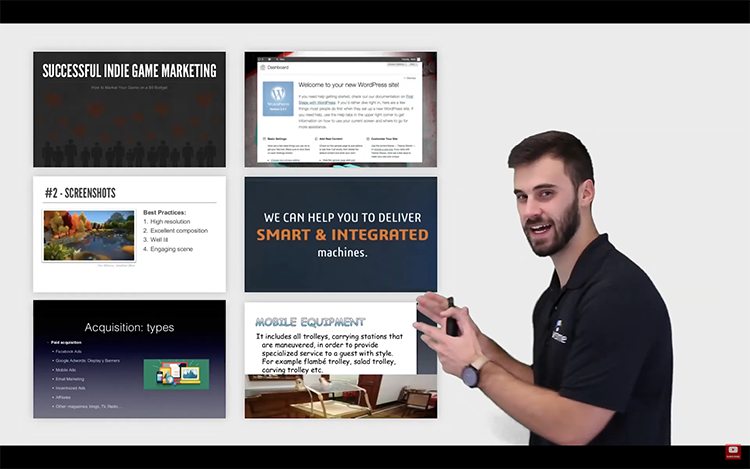

Figure 18: There are no patterns to be had in these presentation slides.
Better

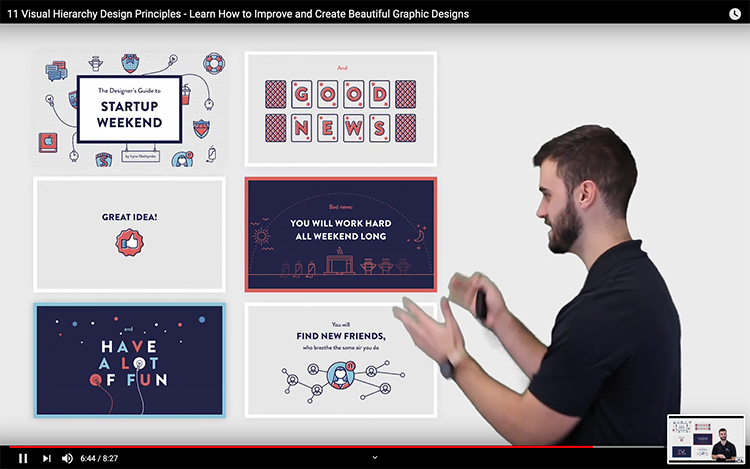

Figure 19: “Unity and cohesiveness” often come from consistent typography, imagery, colour schemes and layout.
10. Leading Lines
Leading lines grab the user’s attention by creating a sense of movement.
Meh

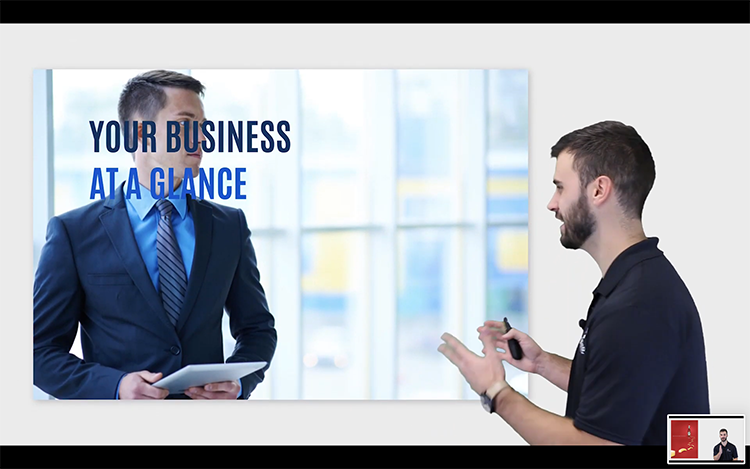

Figure 20: This is just bad layout. It’s not hard to imagine how to fix it.
Better

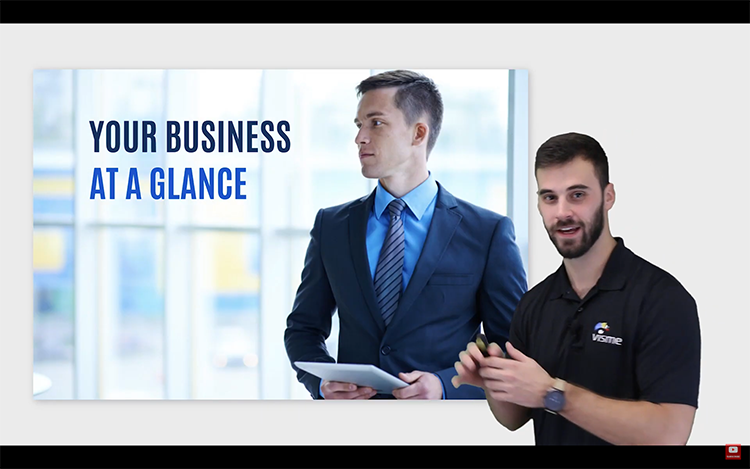

Figure 21: The human gaze is a powerful way to create leading lines.
11. The Rule of Thirds
Divide your design into a 3x3 grid with each intersection being a potential focal point for the user.
Meh

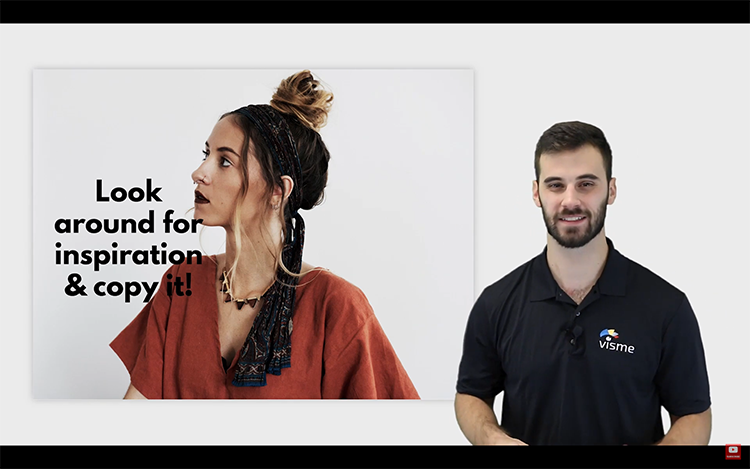

Figure 22: The model is centered horizontally and the text is centered vertically. There are no thirds.
Better

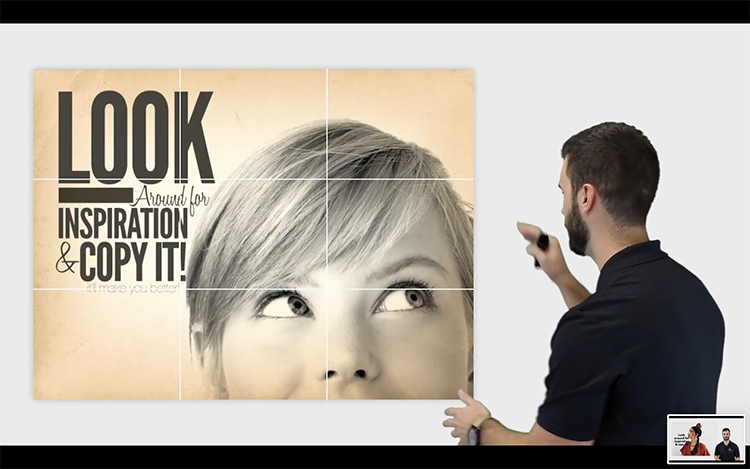

Figure 23: The model and text are more balanced. Notice that the intersections don’t have to be perfect. This “rule” (like everything in this list) is more of a guideline.
Activities
In groups of 3 or 4:
1. Visual Hierarchy fishbowl
Explore the concept of visual hierarchy in the print design industry.
- You found an example of print design. How does it use (or not use) visual hierarchy? What changes would you make?
- What other media of print/graphic design are there? Do the same visual hierarchy principles apply equally from one medium to another?
- Find some websites that make the best use of visual hierarchy. How did you find them?
Summarize your findings and elect a representative to share them with the rest of the class.
